EC-FM6 x AgXeed
Autonomous Mowers
Front-mounted electric mower for autonomous tractor platforms

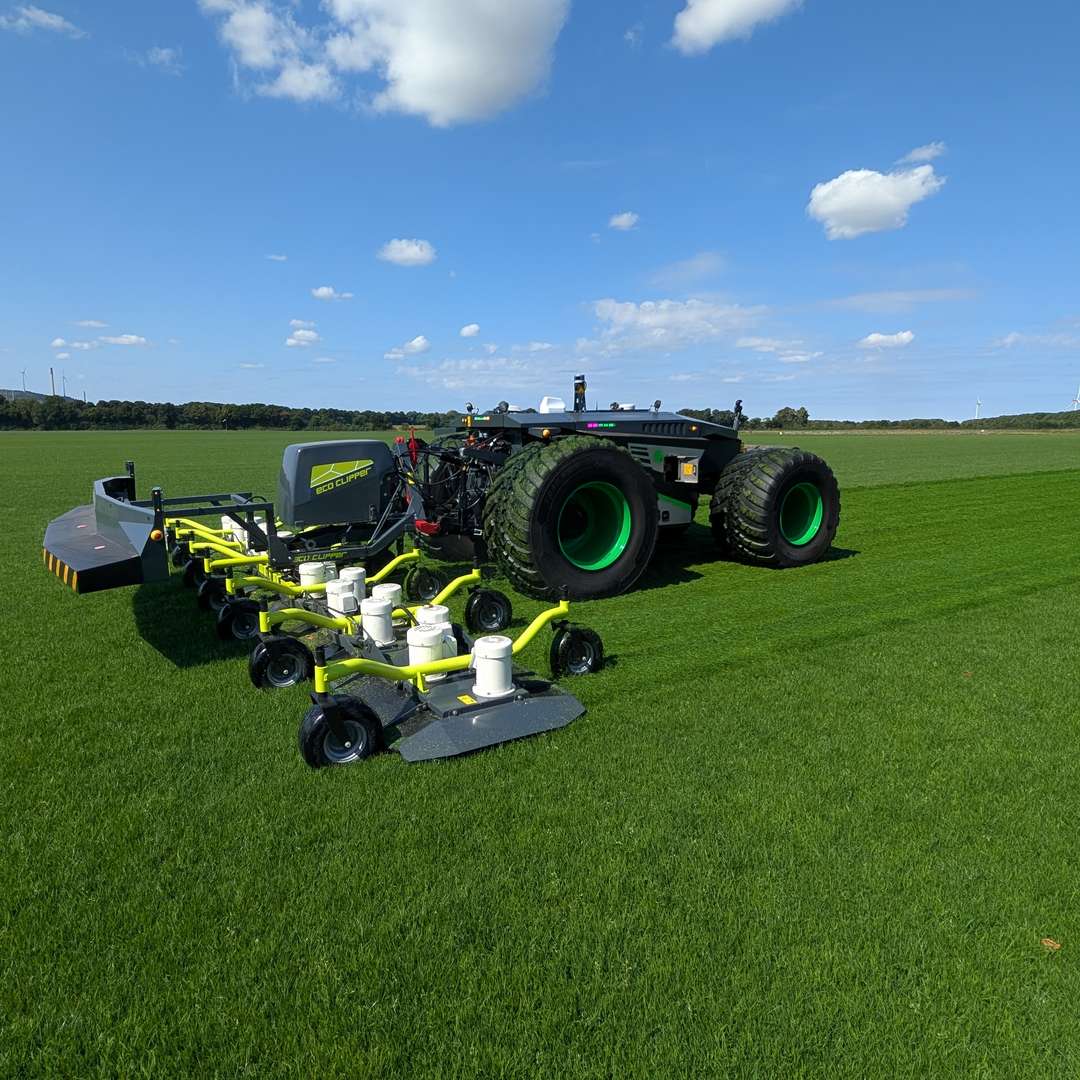

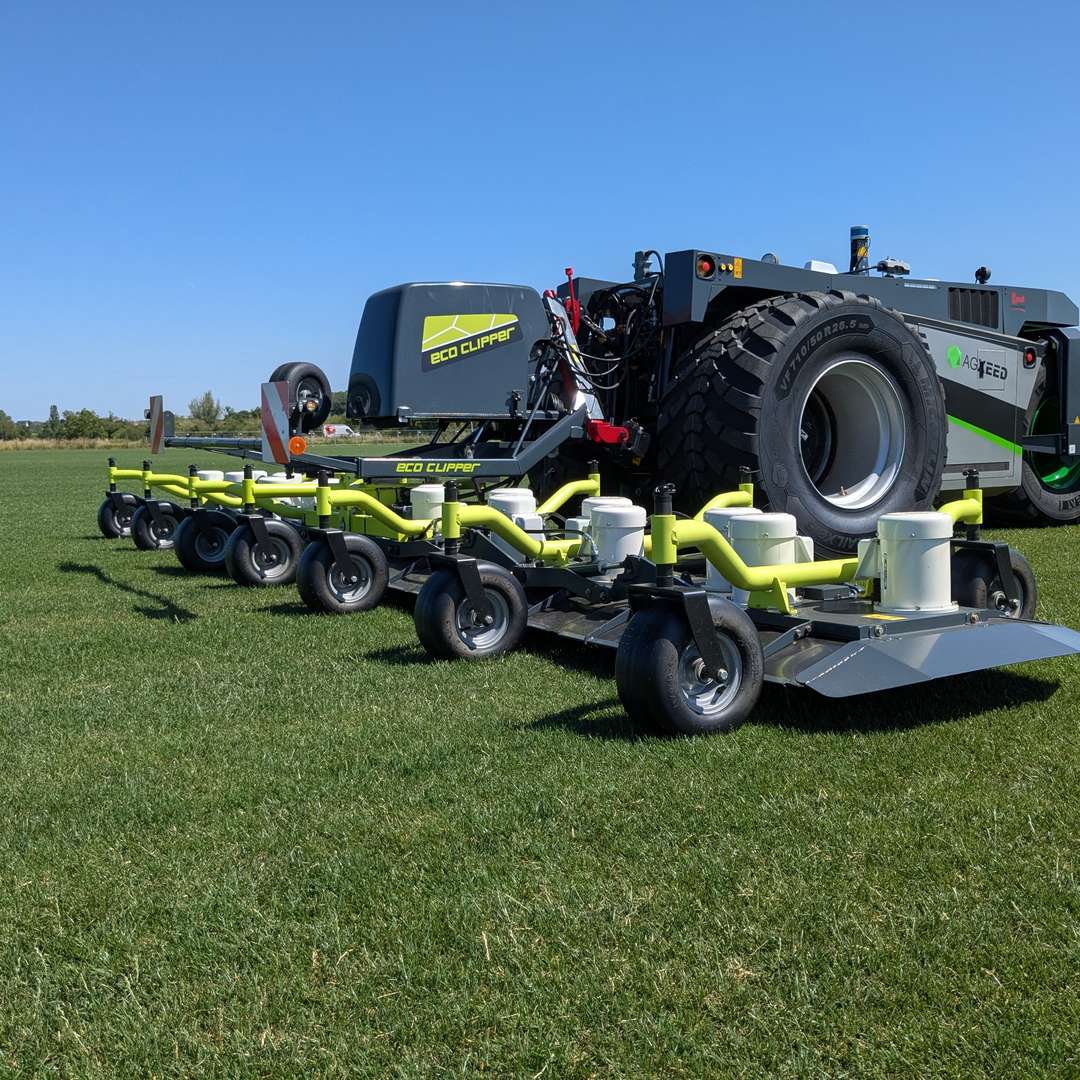

The Eco Clipper FM6 is a 6.15 m front-mounted electric mower designed specifically for integration with AgXeed 3- and 4-wheel autonomous tractor platforms.
Developed in close cooperation with AgXeed, the FM6 control system is fully integrated into the AgXeed vehicle architecture. This enables straightforward configuration, real-time monitoring and coordinated safety functions within the tractor’s autonomous operating environment.
For consistent autonomous safety management, the AgXeed safety bumper is mounted directly to the FM6. This ensures aligned safety zone detection and obstacle response as part of the overall autonomous workflow.
Power supply options
PTO-driven generator (standard)
- Excellent forward visibility and high operator comfort
- Very high mowing capacity for large-area applications
- Electric blade drive with reduced maintenance and energy-efficient operation
- Low noise levels suitable for sensitive environments
The electric blade motors are powered via a PTO-driven generator supplied by the tractor. This configuration provides a robust and field-proven solution with independent power generation for the mowing system.
Direct high-voltage DC supply (optional)
Alternatively, the FM6 can be powered directly through the AgXeed 700 V DC outlet. By eliminating intermediate energy conversion stages, this configuration reduces electrical losses, improves overall drivetrain efficiency and minimizes mechanical wear.
Specifications
Cutting width
6.15 m
Cutting height range
20 - 100 mm
Max speed
13 km/h
